In stock

Code
JPS/TESISAP236

TRAY HEAT SEALER - MODIFIED ATMOSPHERE PACKAGING - Mod. TESISAP236 - SEMI-AUTOMATIC - DIGITAL - WITH STAND - MOULD NOT INCLUDED - MAX TRAY DIMENSIONS mm 420x280 - EC STANDARDS
Lead Time: from 3 to 15 working days
Shipping costs will be calculated once you send your quote request
Customize TRAY HEAT SEALER - MODIFIED ATMOSPHERE PACKAGING - Mod. TESISAP236 - SEMI-AUTOMATIC - DIGITAL - WITH STAND - MOULD NOT INCLUDED - MAX TRAY DIMENSIONS mm 420x280 - EC STANDARDS
STAND FEATURES INTEGRAL SILENT COMPRESSOR WITH ACCUMULATION TANK (only with pump 25 mc/h) FOR Mod. TESISAP236
Made in Italy
+ £1,505.79
VACUUM PUMP 40 mc/h FOR Mod. TESISAP236
Made in Italy
+ £744.21
Name
Qty
Price
AUTOMATIC FILM SCRAP RECYCLING (WASTE)
£2,113.90
PUMP FILTER: FOR LIQUIDS AND POWDERS FOR Mod. TESISAP236
£400.58
UPPER-MOULD FEATURES UNIVERSAL SEAL BAR cm 37x26 FOR Mod. TESISAP236
£2,210.42
N. 1 FIXED DIE MOULD FOR STANDARD TRAYS FOR Mod. TESISAP236
£511.58
N. 2 FIXED DIE MOULD FOR STANDARD TRAYS FOR Mod. TESISAP236
£564.67
N. 4 FIXED DIE MOULD FOR STANDARD TRAYS FOR Mod. TESISAP236
£733.59
MOULD AND UPPER-MOULD WITH N. 1 DIE-CUT FOR Mod. TESISAP236
£3,006.75
MOULD AND UPPER-MOULD WITH N. 2 DIE-CUTS FOR Mod. TESISAP236
£3,648.65
MOULD AND UPPER-MOULD WITH N. 4 DIE-CUTS FOR Mod. TESISAP236
£4,758.68
MOULD AND UPPER-MOULD WITH N. 6 DIE-CUTS FOR Mod. TESISAP236
£5,868.72
VACUUM CHAMBER mm 150 HEIGHT FOR Mod. TESISAP236
£540.54
TRAY HEAT SEALER - MODIFIED ATMOSPHERE PACKAGING - Mod. TESISAP236 - SEMI-AUTOMATIC - DIGITAL - WITH STAND - MOULD NOT INCLUDED - MAX TRAY DIMENSIONS mm 420x280 - EC STANDARDS
TRAY HEAT SEALER - MODIFIED ATMOSPHERE PACKAGING - Mod. TESISAP236 - SEMI-AUTOMATIC - DIGITAL - WITH STAND - MOULD NOT INCLUDED - MAX TRAY DIMENSIONS mm 420x280 - EC STANDARDS
Made in Italy
+ £11,843.25

* Required Fields

Your Customization
TSS125
TRAY HEAT SEALER - MODIFIED ATMOSPHERE PACKAGING - Mod. TESISAP236 - SEMI-AUTOMATIC - DIGITAL - WITH STAND - MOULD NOT INCLUDED - MAX TRAY DIMENSIONS mm 420x280 - EC STANDARDS

In stock

£11,843.25

From £11,843.25

To £37,707.12

Show additional options
Summary
    TRAY HEAT SEALER - MODIFIED ATMOSPHERE PACKAGING - Mod. TESISAP236 - SEMI-AUTOMATIC - DIGITAL - WITH STAND - MOULD NOT INCLUDED - MAX TRAY DIMENSIONS mm 420x280 - EC STANDARDS
    Code
    JPS/TESISAP236
    main product photo

    Termosigillatrici Per Vaschette professionali: offerte Confezionatrici - Termosigillatrici

    Vendita Termosigillatrici Per Vaschette: Attrezzature Per La Ristorazione

    Data sheet
    More Information
    +390721831292
    TRAY HEAT SEALERS
    Gas supply: 3 bar
    MODIFIED ATMOSPHERE PACKAGING
    Vacuum pump 25 mc/h
    Stainless steel and anodized aluminium structure
    Voltage V 230
    Seal bar made from teflon-coated aluminium
    Weight with pump Kg 170
    Movable stand
    Dimensions: mm W 595 x D 750 x H 149
    Digital control panel
    Options: Moulds
    Semi-automatic cycle
    Upper-moulds
    Max tray dimensions: mm 420x280
    Silent compressor
    Max tray depth: mm 100
    Pump
    Reel width and max diameter: W = mm 470
    Pump filter
    Ø = mm 250
    Vacuum chamber
    Power (min.-max.): Kw 2,5-3,5
    Waste
    Cycles per minute: 3-8
    For bespoke moulds, a sample of the container is required so that the manufacturer can make the mould to measure and check the containers are compatible
    Pneumatic supply: 6 bar-6 Nl/c

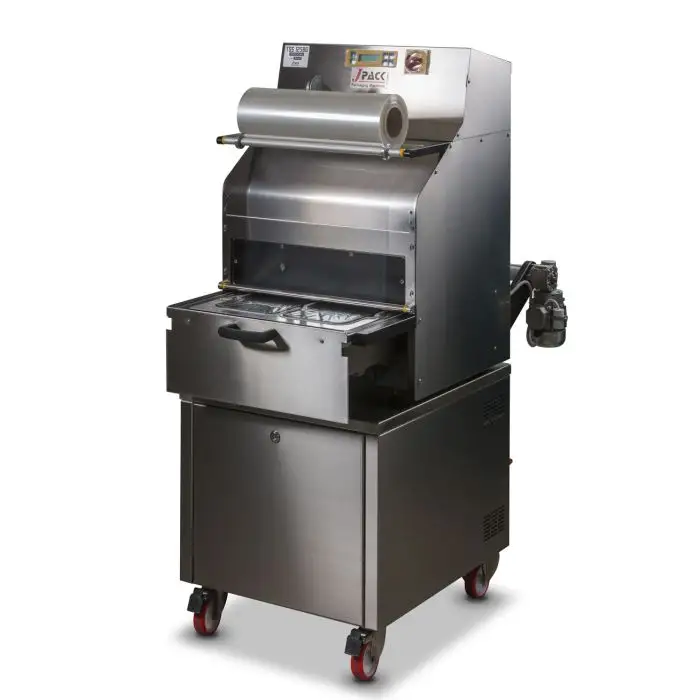

    This appliance allows you to pack your goods in pre-formed trays of various sizes complete with compatible film seals. Made from stainless steel and anodized aluminium. With movable stand. The vacuum pump and general equipment are integrated in the appliance. Stores ten seal programmes. The temperature of the seal bar (0-200 °C) is controlled electronically. End cycle warning sound and light. Cycle starts once moulds have been manually inserted. The appliance allows for 3 different types of packages: seal only, vacuum seal and modified atmosphere seal. An electronic sensor controls with precision the percentage of vacuum and the percentage of the gas introduced. Two types of moulds can be used: with die-cut on the edge of the tray and without die-cut with universal seal bar. Teflon-coated aluminium seal bar. Quick and easy mould change. Optional accessories: waste recycle and silent compressor.

    Add options

    None
    STAND FEATURES INTEGRAL SILENT COMPRESSOR WITH ACCUMULATION TANK (only with pump 25 mc/h) FOR Mod. TESISAP236
    Code: JPS/COM
    £1,505.79
    VACUUM PUMP 40 mc/h FOR Mod. TESISAP236
    Code: JPS/POM
    £744.21

    Add additional options

    AUTOMATIC FILM SCRAP RECYCLING (WASTE)
    Code: JPS/REC
    £2,113.90
    PUMP FILTER: FOR LIQUIDS AND POWDERS FOR Mod. TESISAP236
    Code: JPS/FIL
    £400.58
    UPPER-MOULD FEATURES UNIVERSAL SEAL BAR cm 37x26 FOR Mod. TESISAP236
    Code: JPS/25ST00
    £2,210.42
    N. 1 FIXED DIE MOULD FOR STANDARD TRAYS FOR Mod. TESISAP236
    Code: JPS/25ST01
    £511.58
    N. 2 FIXED DIE MOULD FOR STANDARD TRAYS FOR Mod. TESISAP236
    Code: JPS/25ST02
    £564.67
    N. 4 FIXED DIE MOULD FOR STANDARD TRAYS FOR Mod. TESISAP236
    Code: JPS/25ST04
    £733.59
    MOULD AND UPPER-MOULD WITH N. 1 DIE-CUT FOR Mod. TESISAP236
    Code: JPS/25ST1
    £3,006.75
    MOULD AND UPPER-MOULD WITH N. 2 DIE-CUTS FOR Mod. TESISAP236
    Code: JPS/25ST2
    £3,648.65
    MOULD AND UPPER-MOULD WITH N. 4 DIE-CUTS FOR Mod. TESISAP236
    Code: JPS/25ST4
    £4,758.68
    MOULD AND UPPER-MOULD WITH N. 6 DIE-CUTS FOR Mod. TESISAP236
    Code: JPS/25ST6
    £5,868.72
    VACUUM CHAMBER mm 150 HEIGHT FOR Mod. TESISAP236
    Code: JPS/CAM
    £540.54
    TRAY HEAT SEALER - MODIFIED ATMOSPHERE PACKAGING - Mod. TESISAP236 - SEMI-AUTOMATIC - DIGITAL - WITH STAND - MOULD NOT INCLUDED - MAX TRAY DIMENSIONS mm 420x280 - EC STANDARDS
    TRAY HEAT SEALER - MODIFIED ATMOSPHERE PACKAGING - Mod. TESISAP236 - SEMI-AUTOMATIC - DIGITAL - WITH STAND - MOULD NOT INCLUDED - MAX TRAY DIMENSIONS mm 420x280 - EC STANDARDS
