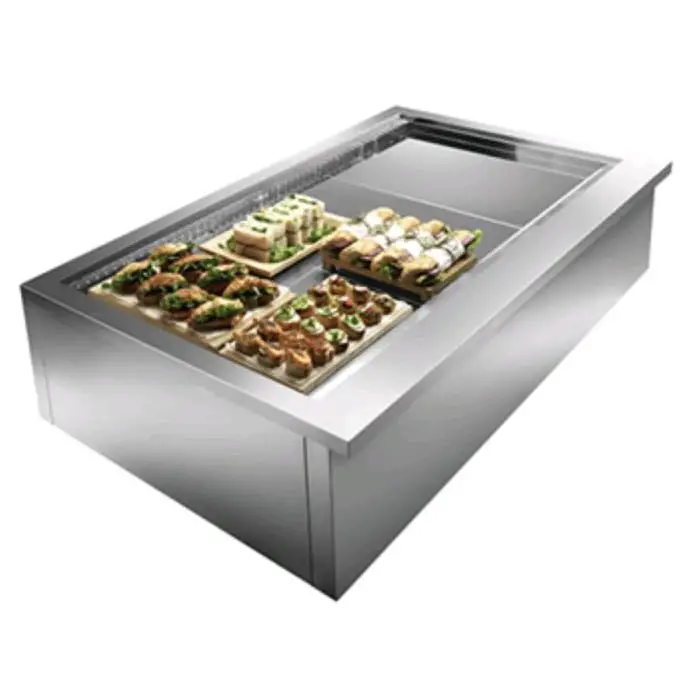

VENTILATED GASTRONORM REFRIGERATED TANK
They are positioned under the steel, marble or Corian worktops, at the specially prepared hole
ENGINE NOT INCLUDED
For positioning above the worktop it is necessary to request a special frame in Scotch Brite stainless steel
Operating temperature: +3°C/+7°C
EXTERNAL CONDENSING UNIT (optional, SEE BELOW)
Ventilated refrigeration by evaporator located on the bottom of the tank
Within 3 METERS:
The refrigeration system is valve
For Length 100cm: UC405TN01 motor
Electrical panel with electronic thermostat for temperature regulation
For Length 135cm: UC610TN02 engine
Digital temperature repeater on the customer side
For length 150cm: UC746TN01 motor
Available lengths cm: 100, 135, 150, 175 and 200
For Length 175cm and 200cm: motor UC002TN01
DISPLAY TOP with stainless steel plates adjustable in height
Within 10 METERS:
CE STANDARD
For Length 100cm: motor UC610TN02
TANK STRUCTURE:
For Length 135cm: motor UC746TN01
Monobloc shell insulated with polyurethane injected at a density of 38/40 kg/mc
For Length 150cm: motor UC002TN01
Tank thickness 50mm
For Length 175cm and 200cm: motor UC005TN00
Visible stainless steel cladding, external sheet metal bottom
