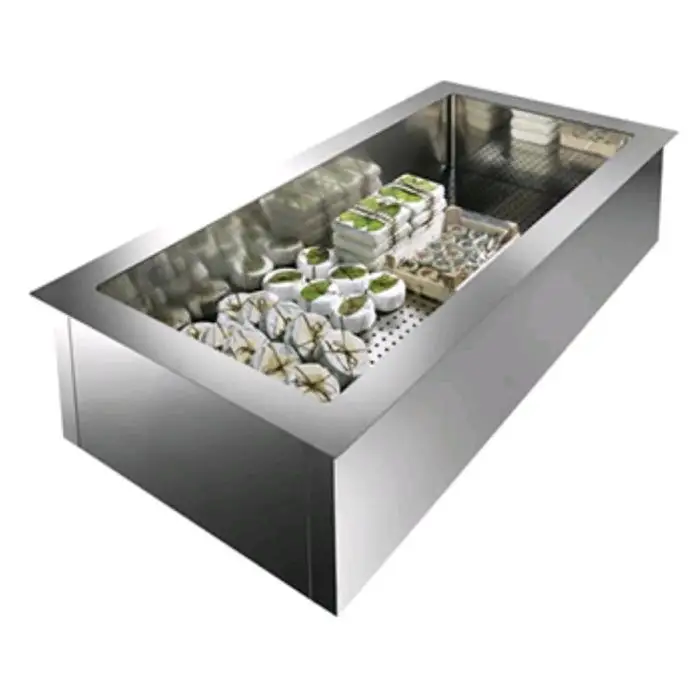

GASTRONORM STATIC REFRIGERATED TANK
Monobloc shell insulated with polyurethane injected at a density of 38/40 kg/mc
ENGINE NOT INCLUDED
Tank thickness 50mm
Operating temperature: +3°C/+7°C
Visible stainless steel cladding, external sheet metal bottom
Static refrigeration by means of a copper coil immersed in polyurethane
They are positioned under the steel, marble or Corian worktops, at the specially prepared hole
Polyurethane in contact with the walls
For positioning above the worktop it is necessary to request a special frame in Scotch Brite stainless steel
Electrical panel with electronic thermostat for temperature regulation
EXTERNAL CONDENSING UNIT (optional, SEE BELOW)
Digital temperature repeater on the customer side
Within 3 METERS:
Available lengths: 100cm and 135cm
For Length 100cm and 135cm: UC610TN02 engine
CE STANDARD
Within 10 METERS:
TANK STRUCTURE:
For Length 100cm and 135cm: UC746TN01 engine
