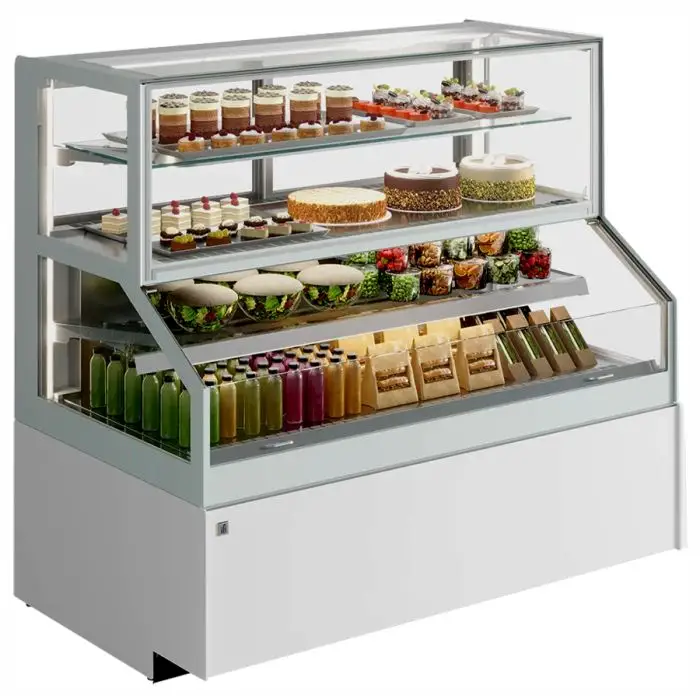

Refrigerated pastry display counter
Upper showcase equipped with rear sliding insulated glass doors with hermetic closure and locking system in the open position to facilitate service operations and loading of the showcase. The locking system is snap-in
Mod LILIUM COMBI
Shelves, sliders, and sliding door guides are all manually removable components
Lower load-bearing structure in epoxy-coated tubular steel
Front panel in white RAL 9010 color
Display shelf of the lower showcase, depth 56.9 cm, composed of shiny finish AISI 304 stainless steel trays (2 in the 96 cm length version and 3 in the 143 cm length version).
Lower sides in 4 mm thick metal, painted in white RAL 9010
Front window for cold containment
Ventilated bottom-to-top refrigeration system
Innovative system for supporting display shelves that replaces the traditional flower rack
The air supply from the operator's side is directed to all shelves and conveyed to the intake area on the customer's side
The system uses anodized aluminum rails, housing LED lighting at 4000°K, on which the shelves can be moved up or down simply by loosening the shelf supports
Full-touch electronic display, water and dust-resistant
The upper shelf of the closed showcase and the intermediate shelf (accessory) of the open showcase can be placed at 3 different heights, spaced 30 mm apart. Before adjusting the height, the glass shelves must be removed
Climate class 3 (25°C / 60% R.H.)
Upper showcase closed with fixed tempered front glass
Refrigerant gas R290
Lower showcase open with a small glass panel for cold containment
The condensing unit is located inside the base and positioned on a sliding metal platform
Sides in tempered insulated glass
Operating temperature: upper showcase closed +4°C/+8°C, lower showcase open +4°C/+8°C
Single tempered glass roof, pyrolytic and heated, depth 52 cm, equipped with LED lighting at 4000°K
