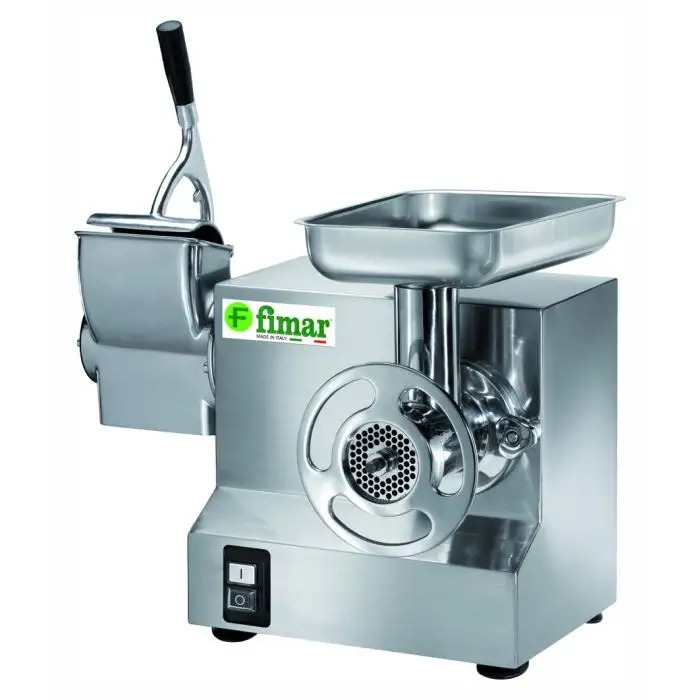

Meat mincer and Grater 22 ATE
Weight kg 38
Stainless steel frame and hopper
Dimensions L 560 x D 430 x 480 h
Mincer production per hour Kg/h 150-250
Packaging dimensions mm L 770 x D 520 x 580 h
Grater production per hour Kg/h 40
Supplied as standard:
Meat inlet Ø mm 52
N. 1 self-sharpening blade and plate
Oil bath gear reduction motor
With holes Ø mm 6 (enterprise system)
Grater features: shiny aluminium inlet mm 140x75
OPTIONS NOT INCLUDED:
Stainless steel roll
Unger system for fine mincing (e.g. for frankfurters)
Protection guard
Accessories not included:
Switch on grater presser lever
Hole plates and blades
Power kw 1,1 hp 1,5
Casing funnels
Supply 1100W 230V single phase 50hz
