In stock

Code
INB/141CTMAX_SVMI

MEAT MATURING AND CONSERVATION CHAMBER - MOD. 141CTMAX PV - INDUSTRY 4.0 - TOUCH SCREEN PANEL - HUMIDITY MANAGEMENT - OPERATING TEMPERATURE -6°/+40°C - CAPACITY Kg 120 - 2 GLASS DOORS - DIM. Cm L 144 x W 80 x H 202 - CE STANDARD
Lead Time: from 3 to 15 working days
Shipping costs will be calculated once you send your quote request
Configure item
Customize MEAT MATURING AND CONSERVATION CHAMBER - MOD. 141CTMAX PV - INDUSTRY 4.0 - TOUCH SCREEN PANEL - HUMIDITY MANAGEMENT - OPERATING TEMPERATURE -6°/+40°C - CAPACITY Kg 120 - 2 GLASS DOORS - DIM. Cm L 144 x W 80 x H 202 - CE STANDARD
Name
Qty
Price
USB ETHERNET DONGLE WITH NETWORK CONNECTOR WITHOUT USING WI-FI
£75.81
3G USB DONGLE TO CONNECT TO THE INTERNET WITH A SIM CARD
£92.34
KEY LOCK (2 GO FOR REFRIGERATED CABINETS WITH 2 DOORS)
£22.80
SINGLE STAINLESS STEEL RACK FOR HANGING CURED MEATS WITH 6 HOOKS - ADD 3 OR 4 PER SHELF, DEPENDING ON THE SIZE OF THE CURED MEATS (to be mounted in place of the grid)
£14.25
WEIGHING SYSTEM FOR MATURING
£922.24
WHITE OR BLACK PAINT SUPPLEMENT (TO BE SPECIFIED AT THE TIME OF ORDER) INTERNAL (DOOR + DASHBOARD + SIDES) FOR 1400/1200 Lt
£322.61
WHITE OR BLACK PAINT SUPPLEMENT (TO BE SPECIFIED AT THE TIME OF ORDER) ON DOOR AND DASHBOARD (1 SIDE) FOR 1400/1200 Lt
£220.58
OZONE GENERATOR WITH PROBE FOR BACTERICIDAL FUNCTION - Essential for the seasoning of cured meats and the maturation of medium-long lasting meat (from 20 to 40 days) to avoid the formation of mold
£576.82
SIMPLE OZONE GENERATOR
£230.27
Name
Qty
Price
STAINLESS STEEL GRID GN 2/1 cm 53x65
£43.32
PLASTIFIED GRILL IN RILSAN GN 2/1 cm 53x65
£18.81
STAINLESS STEEL WHEEL KIT ø 12,5 cm - FOR CABINETS 1400 Lt
£150.48
PAIR OF STAINLESS STEEL GUIDES
£13.68
MEAT MATURING AND CONSERVATION CHAMBER - MOD. 141CTMAX PV - INDUSTRY 4.0 - TOUCH SCREEN PANEL - HUMIDITY MANAGEMENT - OPERATING TEMPERATURE -6°/+40°C - CAPACITY Kg 120 - 2 GLASS DOORS - DIM. Cm L 144 x W 80 x H 202 - CE STANDARD
MEAT MATURING AND CONSERVATION CHAMBER - MOD. 141CTMAX PV - INDUSTRY 4.0 - TOUCH SCREEN PANEL - HUMIDITY MANAGEMENT - OPERATING TEMPERATURE -6°/+40°C - CAPACITY Kg 120 - 2 GLASS DOORS - DIM. Cm L 144 x W 80 x H 202 - CE STANDARD
Made in Italy Industria 4.0
+ £5,361.99

* Required Fields

Your Customization
141CT_CARNE
MEAT MATURING AND CONSERVATION CHAMBER - MOD. 141CTMAX PV - INDUSTRY 4.0 - TOUCH SCREEN PANEL - HUMIDITY MANAGEMENT - OPERATING TEMPERATURE -6°/+40°C - CAPACITY Kg 120 - 2 GLASS DOORS - DIM. Cm L 144 x W 80 x H 202 - CE STANDARD

In stock

£5,361.99

From £5,361.99

To £8,066.00

Show additional options
Summary
    MEAT MATURING AND CONSERVATION CHAMBER - MOD. 141CTMAX PV - INDUSTRY 4.0 - TOUCH SCREEN PANEL - HUMIDITY MANAGEMENT - OPERATING TEMPERATURE -6°/+40°C - CAPACITY Kg 120 - 2 GLASS DOORS - DIM. Cm L 144 x W 80 x H 202 - CE STANDARD
    Code
    INB/141CTMAX_SVMI

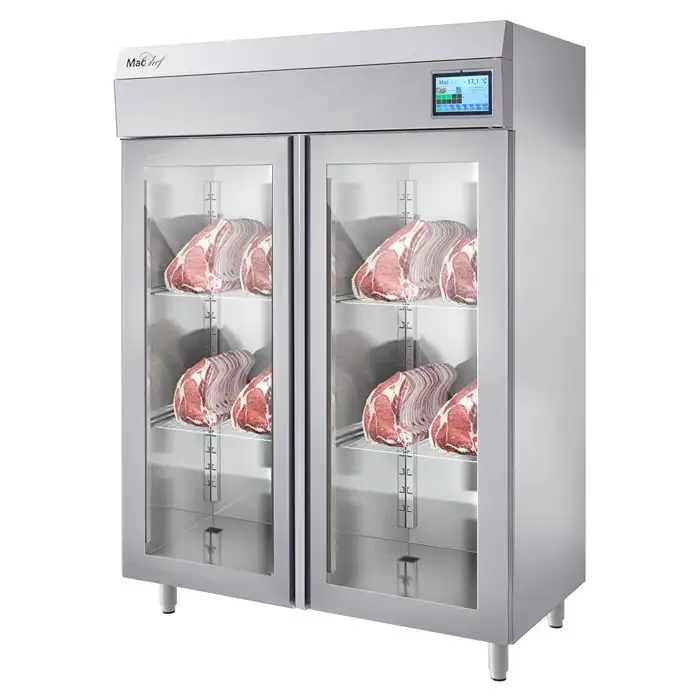

    main product photo

    Curing chambers: Offers Butcher equipment

    Sale Curing chambers: Catering equipment

    Data sheet
    More Information
    +390721831292
    MEAT MATURING, CONSERVATION, AND DRY-AGING CABINETS
    Ventilated
    MOD. 141CTMAX PV
    Capacity 1400 liters
    Stainless steel structure
    Capacity for 120 kg of cold cuts
    Humidity management
    Capacity for 300 kg of ribeye-type meat
    60 mm insulation with expanded HFO polyurethane
    Temperature -6°/+40°C
    Touch screen control panel
    Hot gas defrost
    2 glass doors
    Refrigerant gas R290
    Stainless steel handle
    Climate class 4
    Internal LED lighting
    Minimum ambient operating temperature +14°C
    Humidity management 40% / 85%
    Single-phase power supply 230V/1/50Hz
    Device with automated digital control complying with Industry 4.0 requirements
    Power 2850 W
    Timed ozone generator (optional)
    Dimensions 144 cm x 80 cm x 202 cm
    Functions:
    CE Standard
    Cooling, heating, and maintenance management
    Standard equipment: 6 pairs of guides + 6 GN 2/1 grids
    Management and operation via temperature sensor readings: evaporator, suction cell, relative humidity
    Advanced remote control system included in the price
    Hot / cold / maintenance / humidification / dehumidification / ozone function (optional)
    A technician can remotely modify parameters and be notified via email of any anomalies
    Maturation, short-term dry-aging for about 12 days (for medium to long cycles of about 20-40 days, optional ozone generator required), drying, defrosting, pre-cooking, controlled temperature and humidity storage, and food transformation cycles through temperature / humidity / air sanitization / ventilation
    Also includes one hour of technical assistance and usage support via Zoom mode
    Requires water connection


    Add additional options

    USB ETHERNET DONGLE WITH NETWORK CONNECTOR WITHOUT USING WI-FI
    Code: JOC/EFVTC
    £75.81
    3G USB DONGLE TO CONNECT TO THE INTERNET WITH A SIM CARD
    Code: JOC/EV3H
    £92.34
    KEY LOCK (2 GO FOR REFRIGERATED CABINETS WITH 2 DOORS)
    Code: JOC/8171
    £22.80
    SINGLE STAINLESS STEEL RACK FOR HANGING CURED MEATS WITH 6 HOOKS - ADD 3 OR 4 PER SHELF, DEPENDING ON THE SIZE OF THE CURED MEATS (to be mounted in place of the grid)
    Code: JOC/QH2U
    £14.25
    WEIGHING SYSTEM FOR MATURING
    Code: JOC/TQD218
    £922.24
    WHITE OR BLACK PAINT SUPPLEMENT (TO BE SPECIFIED AT THE TIME OF ORDER) INTERNAL (DOOR + DASHBOARD + SIDES) FOR 1400/1200 Lt
    Code: JOC/WDJO.14
    £322.61
    WHITE OR BLACK PAINT SUPPLEMENT (TO BE SPECIFIED AT THE TIME OF ORDER) ON DOOR AND DASHBOARD (1 SIDE) FOR 1400/1200 Lt
    Code: JOC/WDQD.14
    £220.58
    OZONE GENERATOR WITH PROBE FOR BACTERICIDAL FUNCTION - Essential for the seasoning of cured meats and the maturation of medium-long lasting meat (from 20 to 40 days) to avoid the formation of mold
    Code: JOC/HUP
    £576.82
    SIMPLE OZONE GENERATOR
    Code: JOC/HUT
    £230.27

    Add accessories

    STAINLESS STEEL GRID GN 2/1 cm 53x65
    Code: JOC/HS.21J
    £43.32
    PLASTIFIED GRILL IN RILSAN GN 2/1 cm 53x65
    Code: JOC/HS.2J
    £18.81
    STAINLESS STEEL WHEEL KIT ø 12,5 cm - FOR CABINETS 1400 Lt
    Code: JOC/LU5
    £150.48
    PAIR OF STAINLESS STEEL GUIDES
    Code: JOC/DH.2J
    £13.68
    MEAT MATURING AND CONSERVATION CHAMBER - MOD. 141CTMAX PV - INDUSTRY 4.0 - TOUCH SCREEN PANEL - HUMIDITY MANAGEMENT - OPERATING TEMPERATURE -6°/+40°C - CAPACITY Kg 120 - 2 GLASS DOORS - DIM. Cm L 144 x W 80 x H 202 - CE STANDARD
    MEAT MATURING AND CONSERVATION CHAMBER - MOD. 141CTMAX PV - INDUSTRY 4.0 - TOUCH SCREEN PANEL - HUMIDITY MANAGEMENT - OPERATING TEMPERATURE -6°/+40°C - CAPACITY Kg 120 - 2 GLASS DOORS - DIM. Cm L 144 x W 80 x H 202 - CE STANDARD
