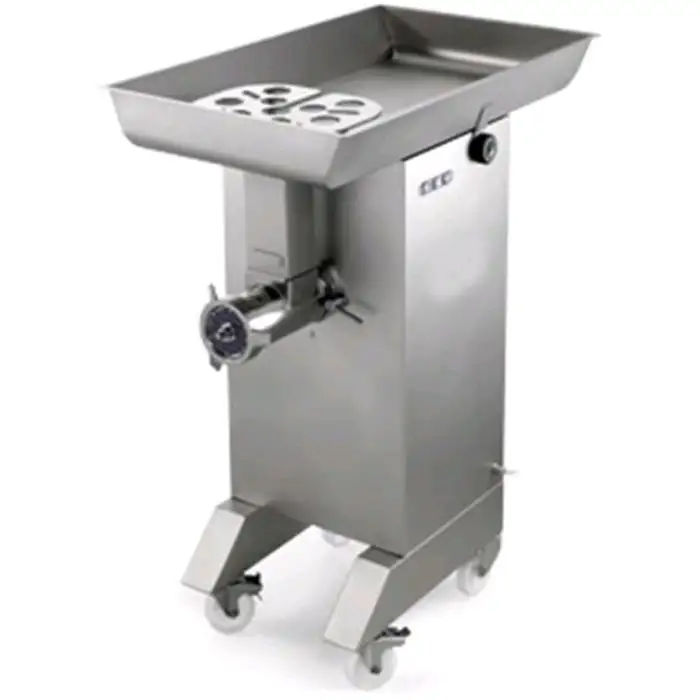

Countertop meat mincer
Standard equipment: self-sharpening stainless steel blade and disc diameter 6
Mod. TC 32.3 GO VERT HP 4
Pestle
Power Watt/hp 2940/4
Propeller and disc extractor tool
Grade AISI 304 stainless steel structure can be easily cleaned with a spray of water
Use and maintenance manual
Thermal (single phase and three phase) motor protection Hp 4. (EC version)
Versions available: countertop: short legs with feet
Sealed planetary gearbox in oil bath
Medium size: medium-sized legs with castors and break
Mincing unit: fully grade AISI 304 stainless steel
Tall: tall legs with castors and break
Designed for high performance
Options available:
Also for pre-minced meat
Stainless steel splash guard
Actual production per hour 1.100 Kg/h
Pedal-operated control
Nominal production per hour 3500 Kg/h
Stainless steel partial unger attachment
Meat residues on head interior 50/90 g
Safety screen for discs hole size > 8 mm
Stainless steel drive pin
Wide range of specific discs and blades
Tempered steel propeller pin
Overcurrent protection (standard on single phase models)
Quick dismantling mincing unit for easy cleaning
Discs supplied as standard Ø mm 4,5
Square feeding neck for quicker load
Weight Kg 90
Wide tray 562 x 900 h 120 with safety switch
Dimensions cm. L34,8 x D39,3 x h117
Stainless steel IP 67 protection rating controls with reverse gear (EC version)
