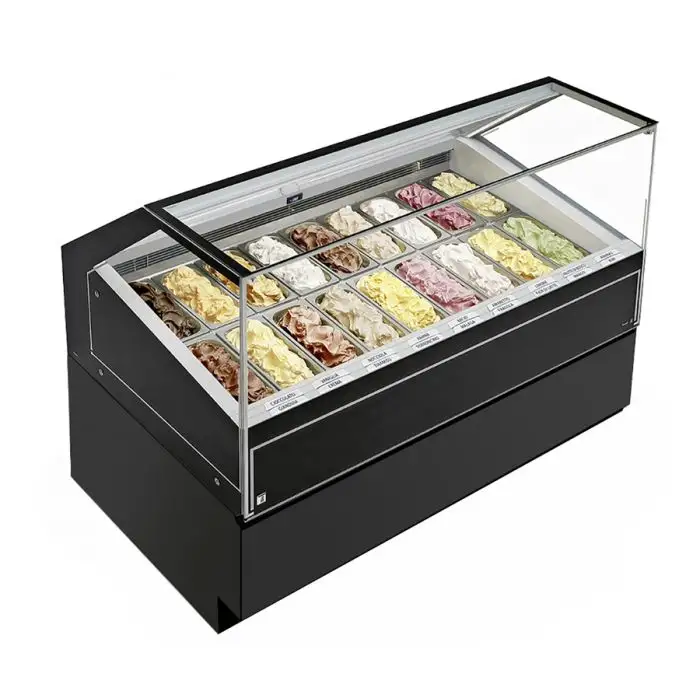

Ice Cream Display
Operator side closure system with sliding transparent methacrylate doors 8 mm thick, with semi-hermetic side seals
No storage
Equipped with an HCS hermetic sealing system and INTELLIGENT DEFROSTING that keeps the ice cream inside the display case
Mod JOLLY VAD
Thanks to sensors that detect when the display case is closed and the RDF (Reduced Defrosting Frequency) system, defrosting only occurs when necessary, creating conditions for perfect product preservation and relative energy savings
Lower supporting structure made of painted steel tubing and adjustable feet
Since defrosting only happens when the display case is in use (open) and not when closed, at the end of the day it is possible to keep the ice cream inside the display case without needing to store it in refrigerated cabinets or low-temperature cold rooms
Monobloc body with a minimum thickness of 50 mm
Ventilated refrigeration
Worktop in polished extruded aluminum, internally insulated with expanded polyurethane, with integrated sliding guides
Refrigeration with “HYBRID COOLING TECHNOLOGY” system: it features a dual source of cooling, a primary one provided by the compressor with the evaporator; a secondary one provided by a cold accumulator
The well accommodates trays in a double row of 36x16.5 or 36x25 cm, resting on rear and front longitudinal panels and a central support tube, with spacers that secure the trays
The secondary cooling source activates when the evaporator of the primary cooling source is in defrosting mode, ensuring that cold air is continuously supplied to the ice cream
High straight glass panels
Condenser protection filter and removable cover without tools
Self-supporting glass canopy with LED lighting (4000°K) under the glass roof and in the 2 side uprights
Electronic control panel for managing the refrigeration and electrical systems, with a digital temperature display of the display case visible to the customer
Pyrolytic, heated, and tempered front glass with top-to-bottom opening
Testing °C/RH +32°/60%
Hidden glass opening clamp
Operating temperature -2°C/-18°C
Pyrolytic, heated, and tempered side glass panels
Refrigerant gas R452a
Fixed roof in single tempered glass with a depth of 48 cm
Set of ice cream trays not included (accessory)
