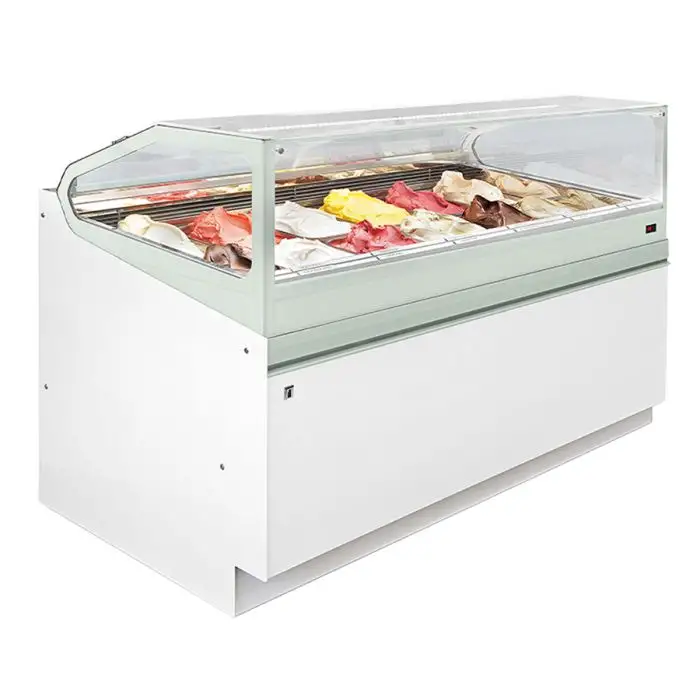

ICE CREAM DISPLAY CASES WITHOUT RESERVATION
Double evaporator for extended continuous operating hours
Semi-finished side panels for cladding
Rapid defrosting (automatic hot gas) differentiated between the front and rear evaporators
Mod SAM80 VBD H 1200
Defrosting is controlled by a dedicated probe located on the evaporator
Ventilated
The condenser unit is housed in a special compartment on a metal base that slides on rails for easy extraction and is protected by a metal grille
Lower supporting structure made of steel tubing painted with epoxy powders
The door on the grille allows access to the condenser filter for cleaning operations
Monoblock shell with a minimum thickness of 50 mm, externally covered in AISI 304 stainless steel with glossy BA finish, and internally in 2B stainless steel
Electronic control panel for managing the refrigeration and electrical systems
Worktop on the operator's side foamed with polyurethane and covered in AISI 304 stainless steel with glossy BA finish
Digital temperature repeater inside the display case, visible to the customer
The basin accommodates trays in double rows of 36x16.5 cm or 36x25 cm, supported by longitudinal front and rear panels and a central support tube, with spacers that lock the trays
The front aesthetic panel and base (accessories) are designed to leave a gap for air expulsion
Low straight glass
If the panel is custom-made, the gap must be provided
Self-supporting glass frame with upper LED lighting
Refrigerant gas R290
Pyrolytic front glass, heated and tempered with top-to-bottom opening
Test °C/RH: +35°/60%
Pyrolytic, heated, and tempered glass side panels
Operating temperature: -2°C/-18°C
Lower side panels made of metal, 3 mm thick
CE standard
Equipped with HCS hermetic sealing system, which allows the ice cream to be stored inside the display case
Adjustable feet
The HCS system consists of: sliding plexiglass doors, 8 mm thick, with hermetic PVC side seals, closure sensors, and a timed RDF (Reduced Defrosting Frequency) defrosting system
Not included: front panel, base, lower metal side panels, ice cream trays, and flavor labels
Thanks to the HCS system, defrosting occurs only when necessary, ensuring perfect product preservation and energy savings
Available upon request in versions without a condenser unit or with a remote condenser unit.
Elevated airflow to ensure uniform temperature inside the basin
