In stock

Code
SMG/SVH152

FULL CUBE ICE MAKER - Model SVH 152 - AIR-COOLED PRODUCTION: up to 160 kg/24 h - WATER-COOLED PRODUCTION: up to 140 kg/24 h - Dimensions: L 55,9 x D 60,9 x H 66,1 cm

Simag
Shipping costs will be calculated once you send your quote request
Configure item
Customize FULL CUBE ICE MAKER - Model SVH 152 - AIR-COOLED PRODUCTION: up to 160 kg/24 h - WATER-COOLED PRODUCTION: up to 140 kg/24 h - Dimensions: L 55,9 x D 60,9 x H 66,1 cm
AIR-COOLED VERSION
IN STOCK
+ £0.00
WATER-COOLED VERSION
+ £39.33
Name
Qty
Price
ICE BIN - MOD. S100 - ICE BIN CAPACITY Kg 129 - Fits with ice machines SVH152/ SVH222/ SPH255 - Insulation: 40 mm polyurethane foam - Dimensions cm L 56,8 x D 84,5 x H 104,8 - Supplied without top
£950.95
ICE STORAGE BIN - MOD. S130 - BIN CAPACITY: 168 kg - Compatible ice maker models: SVH152 / SVH222 / SPH125 / SPH255 - Dimensions: L 56,9 x D 86,9 x H 127,1 cm - Supplied without top panel
£1,131.13
ICE BIN - MOD. S150 - ICE BIN CAPACITY Kg 181 - Fits with ice machines SVH152/ SVH222 - Insulation: 40 mm polyurethane foam - Dimensions cm L 76,8 x D 84,5 x H 104,8 - Supplied with top
£1,650.22
ICE CONTAINER - MOD. S190 - CONTAINER CAPACITY Kg 243 - Type of matching ice maker SVH152/ SVH222 - Insulation: 40 mm polyurethane foam - Dim. cm L 77,1 x D 86,6 x H 127 - Supplied with support surface
£1,827.54
FULL CUBE ICE MAKER - Model SVH 152 - AIR-COOLED PRODUCTION: up to 160 kg/24 h - WATER-COOLED PRODUCTION: up to 140 kg/24 h - Dimensions: L 55,9 x D 60,9 x H 66,1 cm
FULL CUBE ICE MAKER - Model SVH 152 - AIR-COOLED PRODUCTION: up to 160 kg/24 h - WATER-COOLED PRODUCTION: up to 140 kg/24 h - Dimensions: L 55,9 x D 60,9 x H 66,1 cm
IN STOCK
+ £2,548.26

* Required Fields

Your Customization
SVD152-CON_CONTENITORE
FULL CUBE ICE MAKER - Model SVH 152 - AIR-COOLED PRODUCTION: up to 160 kg/24 h - WATER-COOLED PRODUCTION: up to 140 kg/24 h - Dimensions: L 55,9 x D 60,9 x H 66,1 cm

In stock

£2,548.26

From £2,548.26

To £8,147.43

Show additional options
Summary
    FULL CUBE ICE MAKER - Model SVH 152 - AIR-COOLED PRODUCTION: up to 160 kg/24 h - WATER-COOLED PRODUCTION: up to 140 kg/24 h - Dimensions: L 55,9 x D 60,9 x H 66,1 cm
    Code
    SMG/SVH152

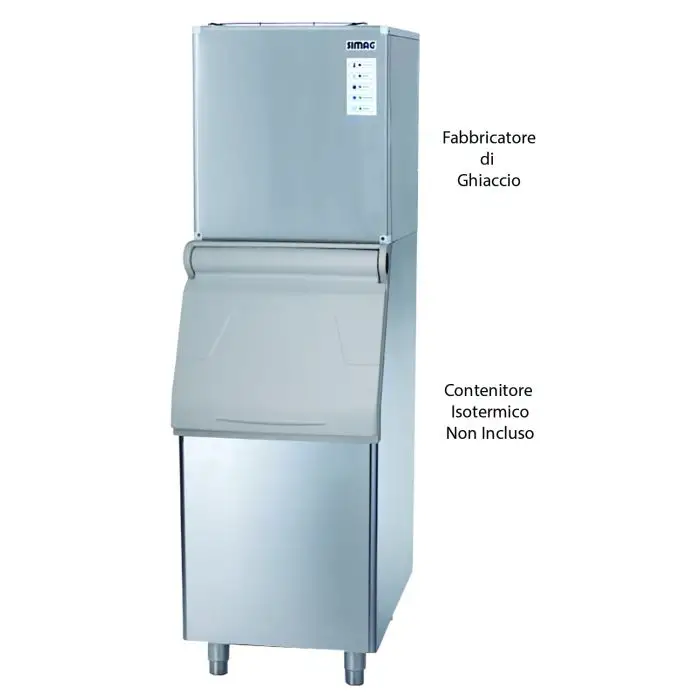

    main product photo

    Ice machines: Offers Refrigeration

    Sale Ice machines: Catering equipment

    Data sheet
    More Information
    +390721831292
    FULL CUBE ICE MAKER
    Ambient temperature: +10 / +40 °C
    Mod. SVH 152
    Water temperature: +5 / +35 °C
    Production in 24h: Air: 160 Kg / Water: 140 Kg
    Inlet water pressure: 1
    Standard cube: S
    5 bar
    10 g
    Water inlet connection: 3/4"
    Cube dimensions (L x D x H): 2,2 x 2,2 x 2,2 cm
    Water outlet connection (L x D x H): 13/16"
    Cube (alternatives on request): HL
    Power supply: Single-phase 230V/1/50 Hz
    6 g
    Power: A = 950 W / W = 950 W
    Condensation: Air
    Water consumption L/Kg: A = 7,3 / W = 109,6
    Water (to be specified when ordering)
    Plug: 1,5 m power cable
    Structure type: Stainless steel Aisi 430
    Dimensions cm L 55,8 x D 61 x H 66,1
    Warranty: 12 months
    Weight: 55 Kg
    Refrigerant gas: R290

    FULL CUBE ICE MAKERS. Compatible bin type: R 130. High-efficiency vertical evaporator. Low energy and water consumption. Automatic diagnostic system with LED indicators. Easily removable condenser air filters. Washable air filter. Built-in cleaning system. Front evaporator access for quick maintenance. Water consumption L/h A=7.3 / W=109.6.

    Add accessories

    ICE BIN - MOD. S100 - ICE BIN CAPACITY Kg 129 - Fits with ice machines SVH152/ SVH222/ SPH255 - Insulation: 40 mm polyurethane foam - Dimensions cm L 56,8 x D 84,5 x H 104,8 - Supplied without top
    ICE BIN - MOD. S100 - ICE BIN CAPACITY Kg 129 - Fits with ice machines SVH152/ SVH222/ SPH255 - Insulation: 40 mm polyurethane foam - Dimensions cm L 56,8 x D 84,5 x H 104,8 - Supplied without top
    Code: SMG/R100
    £950.95
    ICE STORAGE BIN - MOD. S130 - BIN CAPACITY: 168 kg - Compatible ice maker models: SVH152 / SVH222 / SPH125 / SPH255 - Dimensions: L 56,9 x D 86,9 x H 127,1 cm - Supplied without top panel
    ICE STORAGE BIN - MOD. S130 - BIN CAPACITY: 168 kg - Compatible ice maker models: SVH152 / SVH222 / SPH125 / SPH255 - Dimensions: L 56,9 x D 86,9 x H 127,1 cm - Supplied without top panel
    Code: SMG/R130
    £1,131.13
    ICE BIN - MOD. S150 - ICE BIN CAPACITY Kg 181 - Fits with ice machines SVH152/ SVH222 - Insulation: 40 mm polyurethane foam - Dimensions cm L 76,8 x D 84,5 x H 104,8 - Supplied with top
    ICE BIN - MOD. S150 - ICE BIN CAPACITY Kg 181 - Fits with ice machines SVH152/ SVH222 - Insulation: 40 mm polyurethane foam - Dimensions cm L 76,8 x D 84,5 x H 104,8 - Supplied with top
    Code: SMG/R150+PIASTRA
    £1,650.22
    ICE CONTAINER - MOD. S190 - CONTAINER CAPACITY Kg 243 - Type of matching ice maker SVH152/ SVH222 - Insulation: 40 mm polyurethane foam - Dim. cm L 77,1 x D 86,6 x H 127 - Supplied with support surface
    ICE CONTAINER - MOD. S190 - CONTAINER CAPACITY Kg 243 - Type of matching ice maker SVH152/ SVH222 - Insulation: 40 mm polyurethane foam - Dim. cm L 77,1 x D 86,6 x H 127 - Supplied with support surface
    Code: SMG/R190+PIASTRA
    £1,827.54
    FULL CUBE ICE MAKER - Model SVH 152 - AIR-COOLED PRODUCTION: up to 160 kg/24 h - WATER-COOLED PRODUCTION: up to 140 kg/24 h - Dimensions: L 55,9 x D 60,9 x H 66,1 cm
    FULL CUBE ICE MAKER - Model SVH 152 - AIR-COOLED PRODUCTION: up to 160 kg/24 h - WATER-COOLED PRODUCTION: up to 140 kg/24 h - Dimensions: L 55,9 x D 60,9 x H 66,1 cm
