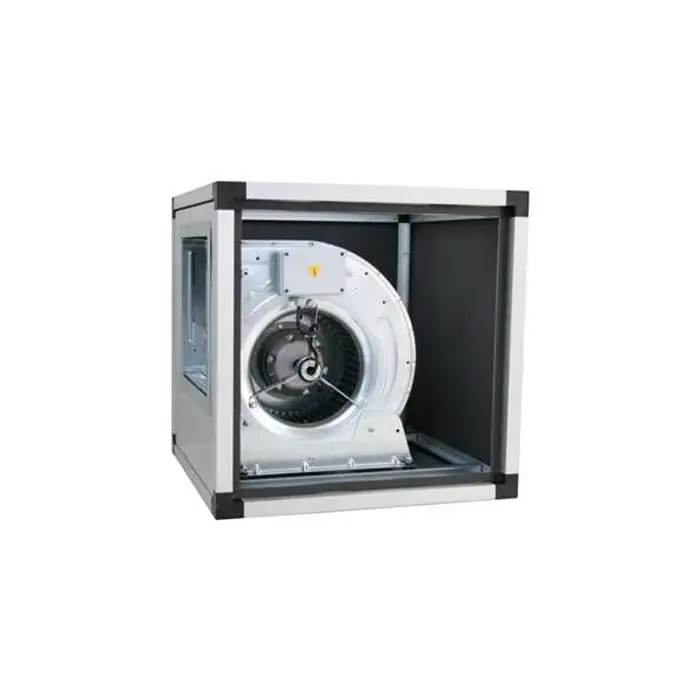

Encased extractor fan with dual suction, directly coupled to impeller (paddles heading forward)
The fan motor is fitted on shock-absorbing rubber feet
The centrifugal fan motor is made from solid hot-pressed galvanized sheet metal
10mm seal between the panel and the fan inlet to avoid vibration
1 speed
Frame made from oxidized aluminium bars D30
Statically and dynamically stabilized
8/10 galvanized double paneling (sandwich), width from 23 to 48 mm with autoextinguishing, sound-proof internal insulation
The electric motor is directly coupled to the impeller and features a terminal board
Inspection door with lock (unlockable only with tools)
