COMMERCIAL AUTOMATIC MEAT MINCER - MOD. TCN 90 HP 7 VERT - Production per hour Kg/h 1000/1200 - Tank capacity Kg 90/120 - THREE PHASE supply 230-400/50/3 - EC standards
Lead Time: from 3 to 15 working days
Shipping costs will be calculated once you send your quote request
Configure item
Customize COMMERCIAL AUTOMATIC MEAT MINCER - MOD. TCN 90 HP 7 VERT - Production per hour Kg/h 1000/1200 - Tank capacity Kg 90/120 - THREE PHASE supply 230-400/50/3 - EC standards
Name
Qty
Price
PEDAL (ONLY FOR TOP-CONTROL)
£88.30
COMMERCIAL AUTOMATIC MEAT MINCER - MOD. TCN 90 HP 7 VERT - Production per hour Kg/h 1000/1200 - Tank capacity Kg 90/120 - THREE PHASE supply 230-400/50/3 - EC standards
COMMERCIAL AUTOMATIC MEAT MINCER - MOD. TCN 90 HP 7 VERT - Production per hour Kg/h 1000/1200 - Tank capacity Kg 90/120 - THREE PHASE supply 230-400/50/3 - EC standards
Made in Italy
+ £7,397.03

* Required Fields

Your Customization
121463
COMMERCIAL AUTOMATIC MEAT MINCER - MOD. TCN 90 HP 7 VERT - Production per hour Kg/h 1000/1200 - Tank capacity Kg 90/120 - THREE PHASE supply 230-400/50/3 - EC standards

In stock

£7,397.03

From £7,397.03

To £7,485.33

Show additional options
Summary
    COMMERCIAL AUTOMATIC MEAT MINCER - MOD. TCN 90 HP 7 VERT - Production per hour Kg/h 1000/1200 - Tank capacity Kg 90/120 - THREE PHASE supply 230-400/50/3 - EC standards
    Code
    FEL/106542432322

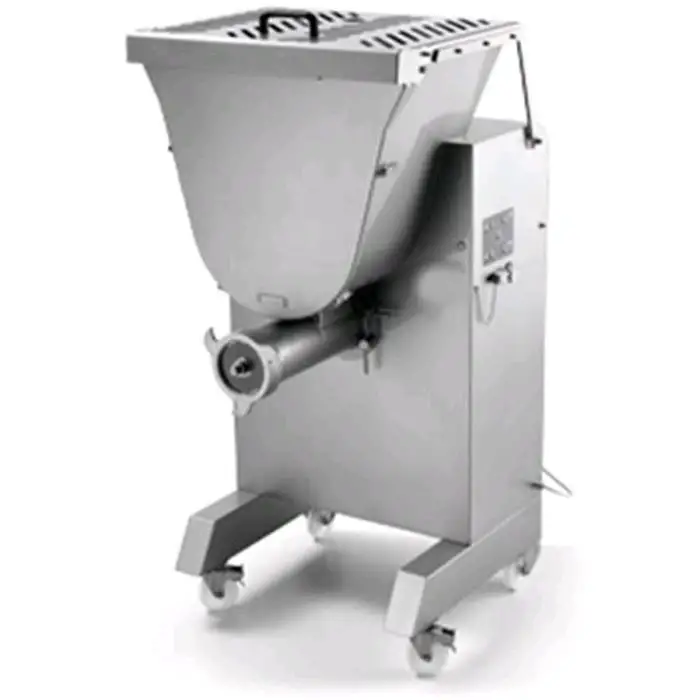

    main product photo

    Tritacarne professionali: offerte Attrezzature Macelleria

    Vendita Tritacarne: Attrezzature Per La Ristorazione

    Data sheet
    More Information
    +390721831292
    Automatic meat mincers
    Safety switch on lid and head
    Mod. TCN 90 HP 7 VERT
    Air pistons allow for self-opening lid
    Meat mincer power Watt/hp 5145/7
    Stainless steel IP 67 protection rating controls with reverse gear
    Mixer power Watt/hp 1102/1,5
    Standard equipment:
    Rpm TC 186 ME 30
    Self-sharpening stainless steel blade and disc diameter 6
    Grade AISI 304 stainless steel structure can be cleaned with a spray of water
    Stainless steel stand with castors and break
    N. 2 individual three phase motors with thermal protection:
    Propeller and disc extractor tool
    Hp 1.5 for mixing paddle/conveyor
    Use and maintenance manual
    Hp 5 or Hp 7 for meat mincer
    Available options:
    Sealed planetary gearbox in oil bath in meat mincer
    Stainless steel splash guard
    Sealed worm gearbox in oil bath in conveyor
    Pedal-operated control
    Fully grade AISI 304 stainless steel mincing unit
    Stainless steel partial unger attachment
    Actual production per hour 1000/1200 Kg/h
    Stainless steel total unger attachment
    Nominal production per hour 3500 Kg/h
    Safety screen for discs hole size > 8 mm
    Meat residues on head interior 50-90 g
    Wide range of specific discs and blades
    Stainless steel drive pin
    Weight Kg 191
    Tempered steel propeller pin
    Dimensions cm. L74,6 x D80,5 x h148,9
    Quick-dismantling tool-free head and paddle

    TCN automatic meat mincers are made from grade AISI 304 stainless steel and can be easily cleaned with a spray of water. Their individual motors feature thermal protection. Grade AISI 304 stainless steel mincing set designed for high performances.

    Add additional options

    PEDAL (ONLY FOR TOP-CONTROL)
    Code: FEL/TOCOPED
    £88.30
    COMMERCIAL AUTOMATIC MEAT MINCER - MOD. TCN 90 HP 7 VERT - Production per hour Kg/h 1000/1200 - Tank capacity Kg 90/120 - THREE PHASE supply 230-400/50/3 - EC standards
    COMMERCIAL AUTOMATIC MEAT MINCER - MOD. TCN 90 HP 7 VERT - Production per hour Kg/h 1000/1200 - Tank capacity Kg 90/120 - THREE PHASE supply 230-400/50/3 - EC standards
